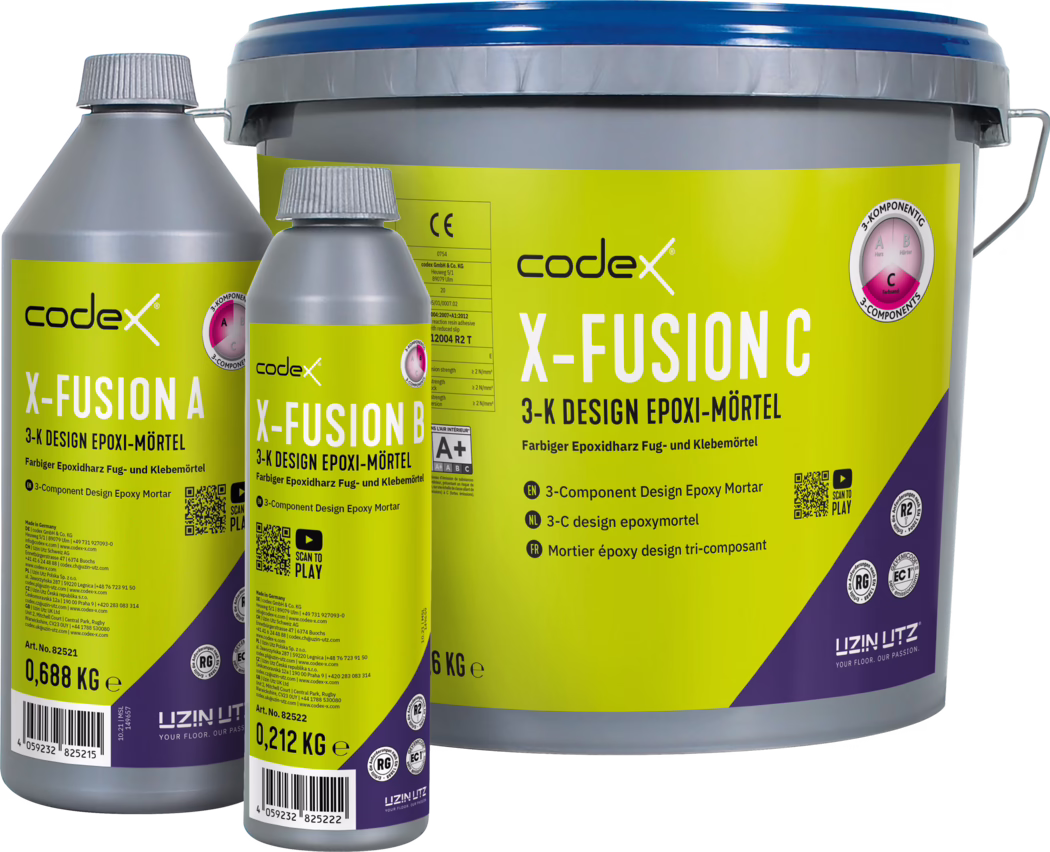

X-Fusion 3-C Design Epoxy Mortar

Effortless processing with the award-winning 3-component epoxy grout. codex X-Fusion is suitable for bonding and grouting optically attractive ceramic coverings. Due to the fine and closed joint surface, the joint is very hygienic and easy to clean.

Applications

  • For earthenware, stoneware, fine stoneware, glass mosaic
  • For large formats
  • For interior and exterior use
  • For wall and floor surfaces
  • For heated coverings
  • Swimming pools, brine and thermal baths
  • Chemical laboratories
  • Food industry
  • For wash rooms, workshops
  • For traffic structures
  • For sales and exhibition rooms
  • For balconies and terraces
  • For residential, commercial and industrial area

Properties

  • For joint widths from 2 to 20 mm
  • Simple processing - no epoxy tools required
  • Very easy to wipe in and wash
  • Easy to mix
  • Colour-stable brilliant results - durably beautiful and resistant joints
  • Optimised storage due to 3 components, separation of binder and colour sand
  • Wide range of applications due to chemical resistance
  • Closed fine surface - hygienic and easy to clean
  • High flank adhesion
  • Water-, dirt- and fungus-repellent
  • Very high resistance to abrasion and high pressure cleaning
  • Highest resistance to frost and de-icing salt
  • Meets the requirements RG according to DIN EN 13888
  • Meets the requirements R2 T according to EN 12004
  • Highest quality level 4 according to DGNB criterion ENV 1.2 Risks for the local environment
  • EMICODE EC1 PLUS / very low emission
  • For healthy constructions

The award-winning and revolutionary 3-component epoxy joint, codex X-Fusion, guarantees the simplest possible application and reduced storage with an optimal appearance.

*At 23 °C and 50 % relative humidity.
Pack type

plastic bottles, plastic bucket

Pack size

3.5 kg

Shelf life

comp. A+B: 12 months
comp. C: 36 months

Joint width

2 to 20 mm

Minimum working temperature

+ 10 to + 25 °C

Ideal working temperatures

+ 10 to + 25 °C

Working Time/ Pot Life

90 minutes*

Set to foot traffic

after approx. 16 hours*

Volle mechanische Belastbarkeit

after approx. 2 days*

Setting time

after approx. 16 hours*

Final strength

after approx. 7 days*

Chemical load application

after approx. 7 days*

Consumption

0.3 - 1.3 kg/m² (grouting)

Article number Article Packsize Shipping unit
82525 codex X-Fusion A+B / 0.9 kg0.9 kg
Piece :
1 piece
82789 codex X-Fusion agate grey / 3.5 kg3.5 kg
Piece :
1 piece
82793 codex X-Fusion anthracite / 3.5 kg3.5 kg
Piece :
1 piece
82795 codex X-Fusion bahama beige / 3.5 kg3.5 kg
Piece :
1 piece
82799 codex X-Fusion black / 3.5 kg3.5 kg
Piece :
1 piece
82457 codex X-Fusion C agate grey / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82454 codex X-Fusion C anthracite / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82459 codex X-Fusion C bahama beige / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82474 codex X-Fusion C black / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82469 codex X-Fusion C cashmere grey / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82465 codex X-Fusion C choco / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
87635 codex X-Fusion C concrete / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82464 codex X-Fusion C cream white / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
87638 codex X-Fusion C graphite / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
86233 codex X-Fusion C grey / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82467 codex X-Fusion C havanna / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82468 codex X-Fusion C jasmine / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
87643 codex X-Fusion C jurabeige / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82470 codex X-Fusion C manhattan / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
87645 codex X-Fusion C mocca / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
174724 codex X-Fusion C piazza grey / 2,6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82471 codex X-Fusion C platinum grey / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
87641 codex X-Fusion C sahara / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82472 codex X-Fusion C sand beige / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82473 codex X-Fusion C silver grey / 2.6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
174726 codex X-Fusion C villa grey / 2,6 kg2.6 kg
Pallet :
72 pieces
Piece :
1 piece
82791 codex X-Fusion cashmere grey / 3.5 kg3.5 kg
Piece :
1 piece
82797 codex X-Fusion choco / 3.5 kg3.5 kg
Piece :
1 piece
87634 codex X-Fusion concrete / 3.5 kg3.5 kg
Piece :
1 piece
82599 codex X-Fusion cream white / 3.5 kg3.5 kg
Piece :
1 piece
87637 codex X-Fusion graphite / 3.5 kg3.5 kg
Piece :
1 piece
86232 codex X-Fusion grey / 3.5 kg3.5 kg
Piece :
1 piece
82798 codex X-Fusion havanna / 3.5 kg3.5 kg
Piece :
1 piece
82794 codex X-Fusion jasmine / 3.5 kg3.5 kg
Piece :
1 piece
87642 codex X-Fusion jurabeige / 3.5 kg3.5 kg
Piece :
1 piece
82601 codex X-Fusion manhattan / 3.5 kg3.5 kg
Piece :
1 piece
87644 codex X-Fusion mocca / 3.5 kg3.5 kg
Piece :
1 piece
174723 codex X-Fusion piazza grey / 3,5 kg3.5 kg
Piece :
1 piece
82790 codex X-Fusion platinum grey / 3.5 kg3.5 kg
Piece :
1 piece
87639 codex X-Fusion sahara / 3.5 kg3.5 kg
Piece :
1 piece
82796 codex X-Fusion sand beige / 3.5 kg3.5 kg
Piece :
1 piece
82600 codex X-Fusion silver grey / 3.5 kg3.5 kg
Piece :
1 piece
174725 codex X-Fusion villa grey / 3,5 kg3.5 kg
Piece :
1 piece
codex_Icon_RG_13888_28mm_EN_2024-12
codex_Icon_R2-T_28mm_EN_2024-12
codex_Icon_CE_2024-12
