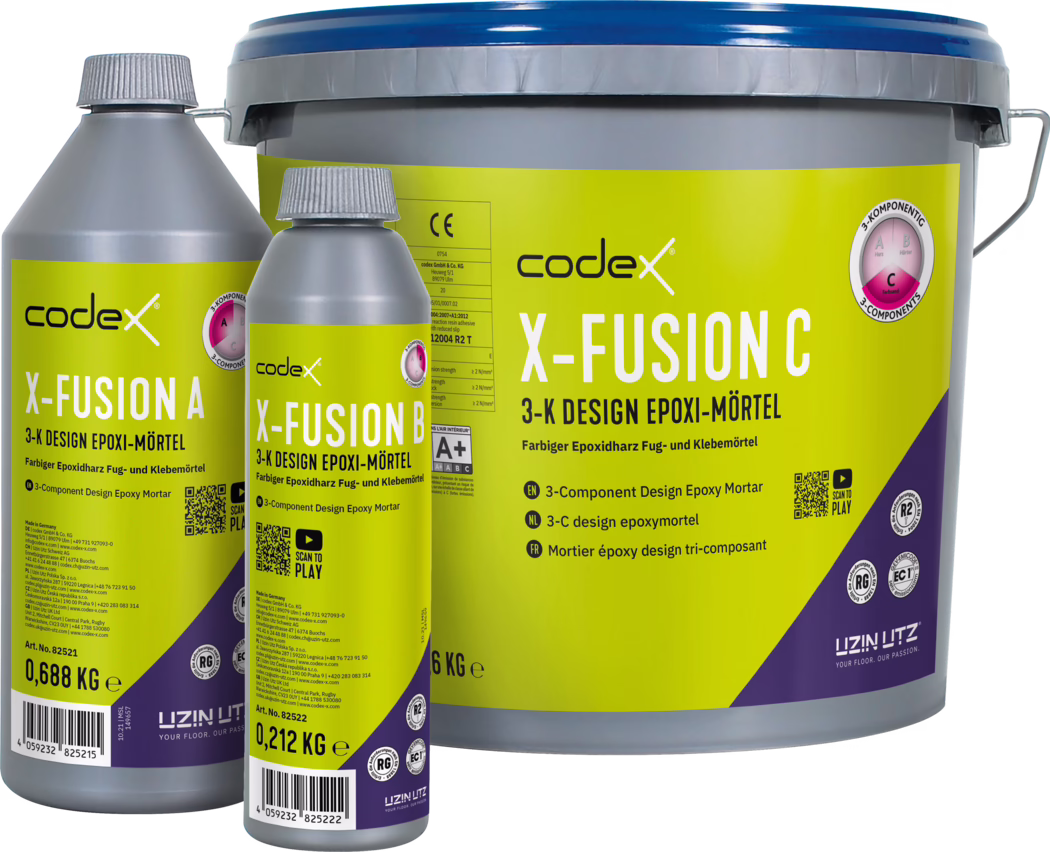

codex X-Fusion 3-C Design Epoxy Mortar
Effortless processing with the award-winning 3-component epoxy grout. codex X-Fusion is suitable for bonding and grouting optically attractive ceramic coverings. Due to the fine and closed joint surface, the joint is very hygienic and easy to clean.
Applications
- For earthenware, stoneware, fine stoneware, glass mosaic
- For large formats
- For interior and exterior use
- For wall and floor surfaces
- For heated coverings
- Swimming pools, brine and thermal baths
- Chemical laboratories
- Food industry
- For wash rooms, workshops
- For traffic structures
- For sales and exhibition rooms
- For balconies and terraces
- For residential, commercial and industrial area
Properties
- For joint widths from 2 to 20 mm
- Simple processing - no epoxy tools required
- Very easy to wipe in and wash
- Easy to mix
- Colour-stable brilliant results - durably beautiful and resistant joints
- Optimised storage due to 3 components, separation of binder and colour sand
- Wide range of applications due to chemical resistance
- Closed fine surface - hygienic and easy to clean
- High flank adhesion
- Water-, dirt- and fungus-repellent
- Very high resistance to abrasion and high pressure cleaning
- Highest resistance to frost and de-icing salt
- Meets the requirements RG according to DIN EN 13888
- Meets the requirements R2 T according to EN 12004
The award-winning and revolutionary 3-component epoxy joint, codex X-Fusion, guarantees the simplest possible application and reduced storage with an optimal appearance.
| Pack type |
plastic bottles, plastic bucket |
|---|---|
| Pack size |
3.5 kg |
| Shelf life |
comp. A+B: 12 months |
| Joint width |
2 to 20 mm |
| Minimum working temperature |
+ 10 to + 25 °C |
| Ideal working temperatures |
+ 10 to + 25 °C |
| Working Time/ Pot Life |
90 minutes* |
| Set to foot traffic |
after approx. 16 hours* |
| Volle mechanische Belastbarkeit |
after approx. 2 days* |
| Setting time |
after approx. 16 hours* |
| Final strength |
after approx. 7 days* |
| Chemical load application |
after approx. 7 days* |
| Consumption |
0.3 - 1.3 kg/m² (grouting) |
| Article number | Article | Packsize | Shipping unit |
|---|---|---|---|
| 82525 | codex X-Fusion A/B | 0.9 kg |
Piece :
1 piece
|
| 82789 | codex X-Fusion A/B+C agate grey | 3.5 kg |
Piece :
1 piece
|
| 82793 | codex X-Fusion A/B+C anthracite | 3.5 kg |
Piece :
1 piece
|
| 82795 | codex X-Fusion A/B+C bahama beige | 3.5 kg |
Piece :
1 piece
|
| 82799 | codex X-Fusion A/B+C black | 3.5 kg |
Piece :
1 piece
|
| 82791 | codex X-Fusion A/B+C cashmere grey | 3.5 kg |
Piece :
1 piece
|
| 82797 | codex X-Fusion A/B+C choco | 3.5 kg |
Piece :
1 piece
|
| 87634 | codex X-Fusion A/B+C concrete | 3.5 kg |
Piece :
1 piece
|
| 82599 | codex X-Fusion A/B+C cream white | 3.5 kg |
Piece :
1 piece
|
| 87637 | codex X-Fusion A/B+C graphite | 3.5 kg |
Piece :
1 piece
|
| 86232 | codex X-Fusion A/B+C grey | 3.5 kg |
Piece :
1 piece
|
| 82798 | codex X-Fusion A/B+C havanna | 3.5 kg |
Piece :
1 piece
|
| 82794 | codex X-Fusion A/B+C jasmine | 3.5 kg |
Piece :
1 piece
|
| 87642 | codex X-Fusion A/B+C jurabeige | 3.5 kg |
Piece :
1 piece
|
| 82601 | codex X-Fusion A/B+C manhattan | 3.5 kg |
Piece :
1 piece
|
| 87644 | codex X-Fusion A/B+C mocca | 3.5 kg |
Piece :
1 piece
|
| 174723 | codex X-Fusion A/B+C piazza grey | 3.5 kg |
Piece :
1 piece
|
| 82790 | codex X-Fusion A/B+C platinum grey | 3.5 kg |
Piece :
1 piece
|
| 87639 | codex X-Fusion A/B+C sahara | 3.5 kg |
Piece :
1 piece
|
| 82796 | codex X-Fusion A/B+C sand beige | 3.5 kg |
Piece :
1 piece
|
| 82600 | codex X-Fusion A/B+C silver grey | 3.5 kg |
Piece :
1 piece
|
| 174725 | codex X-Fusion A/B+C villa grey | 3.5 kg |
Piece :
1 piece
|
| 82457 | codex X-Fusion C agate grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82454 | codex X-Fusion C anthracite | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82459 | codex X-Fusion C bahama beige | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82474 | codex X-Fusion C black | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82469 | codex X-Fusion C cashmere grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82465 | codex X-Fusion C choco | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 87635 | codex X-Fusion C concrete | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82464 | codex X-Fusion C cream white | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 87638 | codex X-Fusion C graphite | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 86233 | codex X-Fusion C grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82467 | codex X-Fusion C havanna | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82468 | codex X-Fusion C jasmine | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 87643 | codex X-Fusion C jurabeige | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82470 | codex X-Fusion C manhattan | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 87645 | codex X-Fusion C mocca | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 174724 | codex X-Fusion C piazza grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82471 | codex X-Fusion C platinum grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 87641 | codex X-Fusion C sahara | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82472 | codex X-Fusion C sand beige | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 82473 | codex X-Fusion C silver grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
| 174726 | codex X-Fusion C villa grey | 2.6 kg |
Pallet :
72 pieces
Piece :
1 piece
|
