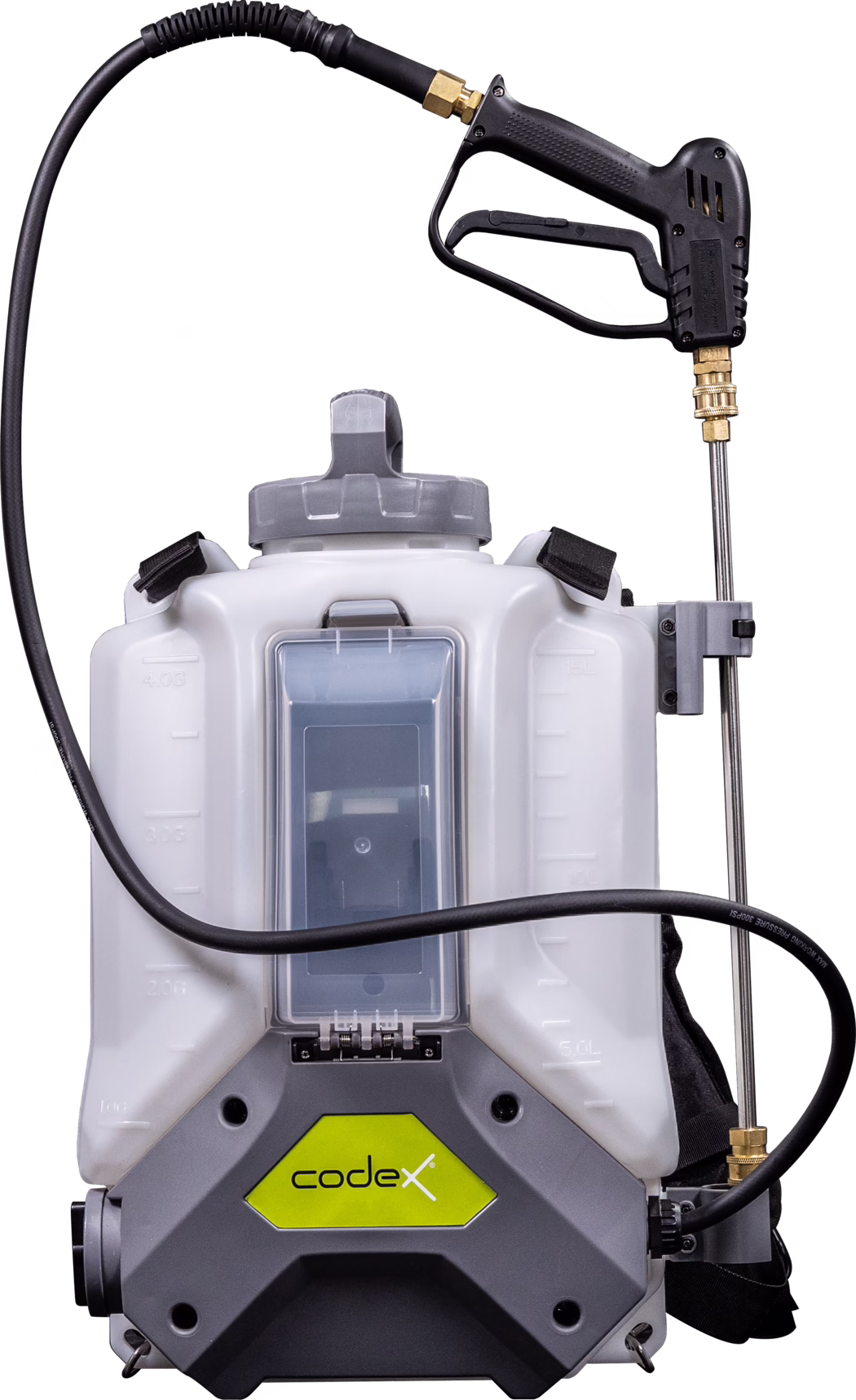

codex X-Spray Battery sprayer

Ergonomic battery backpack sprayer with variable pressure setting for even application

Applications

Battery sprayer for applying water-based dispersion primers and codex Pure Cleaner to walls and floors

Properties

  • Powerful
  • High area output
  • Very quiet operation
  • Durable stainless steel components
  • Drip-free flat spray nozzle
  • Quick coupling
  • 4-stage pressure adjustment
  • Uniform application

Weight

6 kg (empty)

Tank

15 litres

Druck

0.5 - 4 bar

Spannung

18 V

Batterie

2.6 Ah

Article number Article Packsize Shipping unit
175315 codex X-Spray 1 piece
Pack :
1 piece
176290 codex X-Spray Battery charger 1 piece
Pack :
1 piece
176304 codex X-Spray Battery cover 1 piece
Bag :
1 piece
176291 codex X-Spray Carrying straps 1 piece
Bag :
1 piece
176294 codex X-Spray Hose assembly 1 piece
Bag :
1 piece
176095 codex X-Spray Li-battery 18V/2,6Ah/47Wh 1 piece
Pack :
1 piece
176299 codex X-Spray Nozzle blue 110-03 coupling 1 piece
Bag :
1 piece
176298 codex X-Spray Nozzle red 110-06 coupling 1 piece
Bag :
1 piece
176295 codex X-Spray Pump 1 piece
Pack :
1 piece
176296 codex X-Spray Pump + circuit board assembly 1 piece
Pack :
1 piece
176293 codex X-Spray Spray gun 1 piece
Bag :
1 piece
176297 codex X-Spray Spray lance 1 piece
Bag :
1 piece
176301 codex X-Spray Spray lance holding clip bottom 1 piece
Bag :
1 piece
176300 codex X-Spray Spray lance holding clip top 1 piece
Bag :
1 piece
176292 codex X-Spray Tank lid 1 piece
Bag :
1 piece
176303 codex X-Spray Tank lid sealing ring 1 piece
Bag :
1 piece
176302 codex X-Spray Tank strainer 1 piece
Bag :
1 piece
