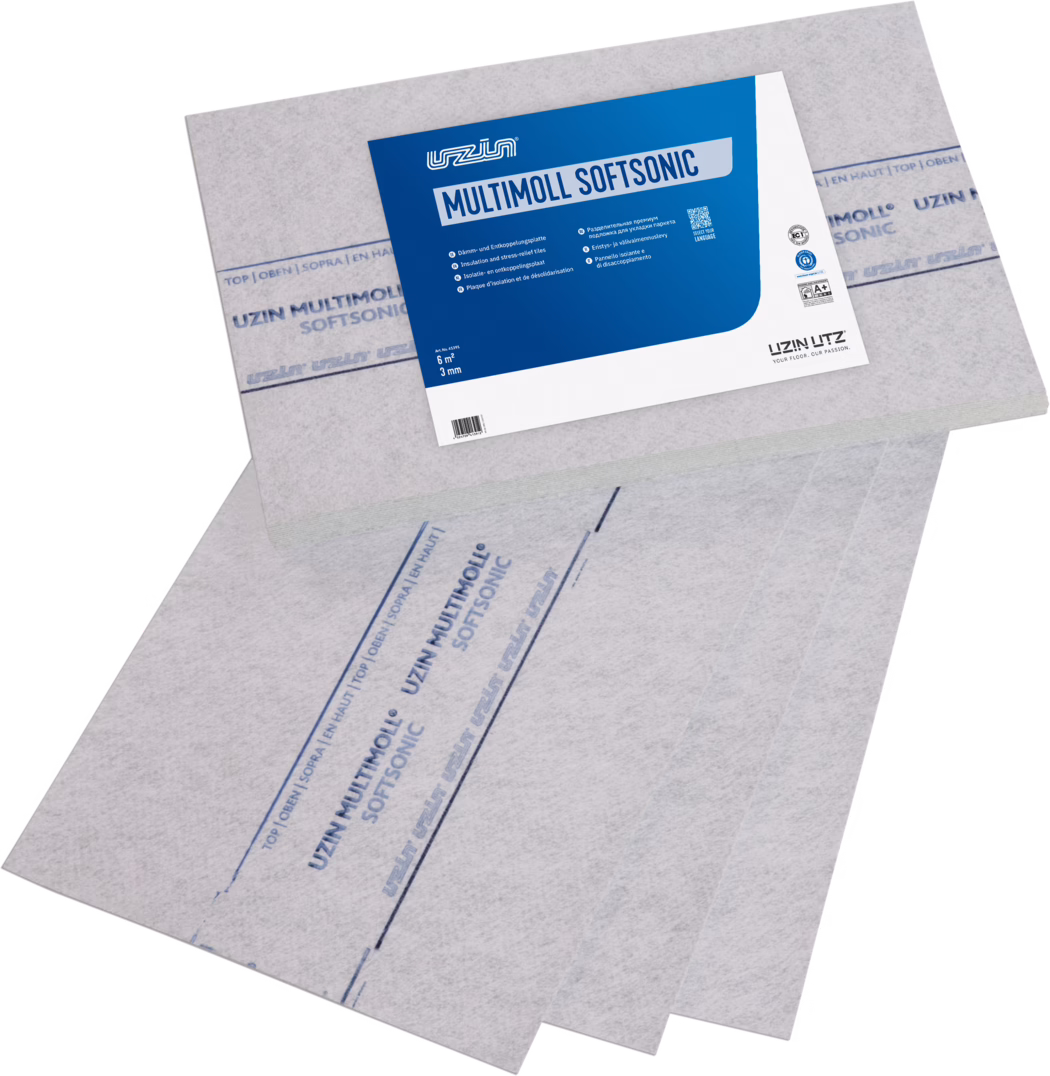

Multimoll Softsonic 4mm Insulating and stress-relieving Mat
The UZIN Multimoll Softsonic 4 mm insulation and decoupling mat reduces impact and resonance sound at a low installation height. Multimoll Softsonic compensates for shear and tensile stresses that occur between the substrate and the covering, has a crack-bridging effect and at the same time reduces the impact and resonance sound that often occurs with tile and slab coverings.
Applications
Underlay mat for subsequent installation using the thin-bed and medium-bed method
- From tile and natural stone coverings
- From concrete block and artificial stone coverings
- On underfloor heating under electric underfloor heating systems
- On screeds at risk of cracking
- For domestic and commercial areas
Properties
- Available: lose, palletized or in a practical carton
- Low build-up height, ideal for renovation
- Easy to cut and install
- 2-in-1 function: decoupling plus impact sound improvement
- Permeable to water vapour, active breathing
- Crack-bridging
The UZIN Multimoll Softsonic 4 mm insulation and decoupling mat reduces impact and resonance sound at a low installation height.
| Pack size | carton with 4.5 m² |
|---|---|
| Shelf life | 3 years |
| Color | beige-white |
| Length | 75 cm |
| Width | 50 cm |
| Thickness | 4 mm |
| Burning behaviour | B1 with tile covering |
| Traffic load capacity | 2 kN/m² |
| Coefficient of improvement of sound absorption | 14 dB with tiles loose, according to EN ISO 140-8 |
| Area weight | 5.1 kg |
| Wärmeleitfähigkeit | 0.11 W/mK |
| SD value | 2 m |
| Article number | Article | Packsize | Shipping unit |
|---|---|---|---|
| 14559 | UZIN Multimoll SoftSonic / 112.5 m² pallet | 112.5 m² | Pallet : 300 panels = 112.5 m² |
| 14560 | UZIN Multimoll SoftSonic / 4.5 m² carton | 4.5 m² | Pallet : 24 cartons = 108 m² Pack : 12 panels = 4.5 m² |
