DB 140 Inner/Outer Corner Sealing corners

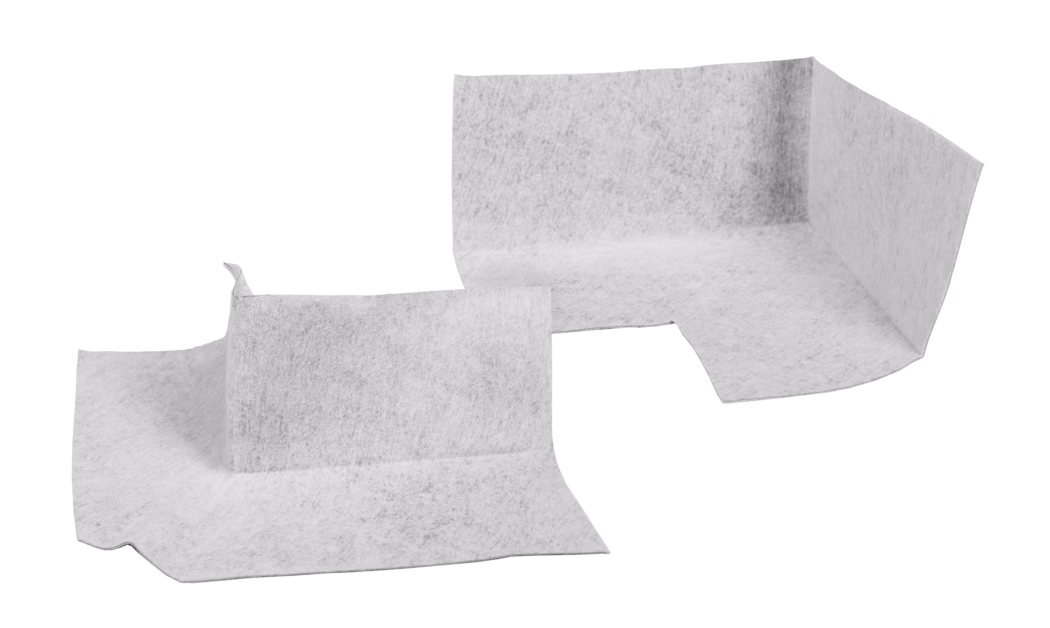

The especially thin codex DB 140 inner and outer corners are a fleece-coated sealing corner for composite sealants in interior and exterior areas.

Applications

  • For all codex sealing systems
  • For load classes A, A0 and B0 according to ZDB bulletin
  • For water impact classes W0, W1, W2 and W3 without chemical exposure according to DIN 18534
  • For sealing balconies, loggias and walkways according to DIN 18531-5
  • For showers, baths and toilets
  • For balconies and patios with a slope > 1.5%
  • For retirement homes and hotels
  • For interior and exterior use
  • For residential and industrial areas
  • For corner, connecting and movement joints
  • On calcium sulphate and cementitious screeds, concrete
  • On gypsum, lime cement and cement plaster
  • On gypsum carton and gypsum board plates, tile backing elements
  • On underfloor heating, on wall and floor

Properties

  • Waterproof
  • Heat- and frost-resistant
  • Easy to cut and process
  • Stretchable
  • Fleece laminated on both sides
  • Material thickness: 0.5 mm
  • Width: 120 mm
  • Length: 120 mm
  • For use with codex DB 140 Slim
  • Highest quality level 4 according to DGNB criterion ENV 1.2 Risks for the local environment
  • EMICODE EC 1 PLUS / very low-emission
  • For healthy construction

Technical data

Pack type

carton

Pack size

25 corners

Shelf life

36 months

Color

light grey

Length

12 cm

Width

12 cm

Thickness

approx. 0.5 mm

Ordering information

Article Article number Packsize Shipping unit
codex DB 140 inner corner / 25 pcs 10448 25 corners
Pack :
25 pieces
codex DB 140 outer corner / 25 pcs 10449 25 corners
Pack :
25 pieces
